    35mm 10MP High Resolution Lens 1/1.4 HD Manual IRIS Focus C Mount For CCTV Camera Industrial Microscope

    Ask Lasest Price
    Brand Name : Octavia
    Model Number : MR-C3514W-L10MP
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C, PAYPAL, WEST UNION
    Supply Ability : 1000000pcs/month
    Delivery Time : The regular products will be ready within 3 to 7 days, special models will need about 30 days
    • Product Details
    • Company Profile

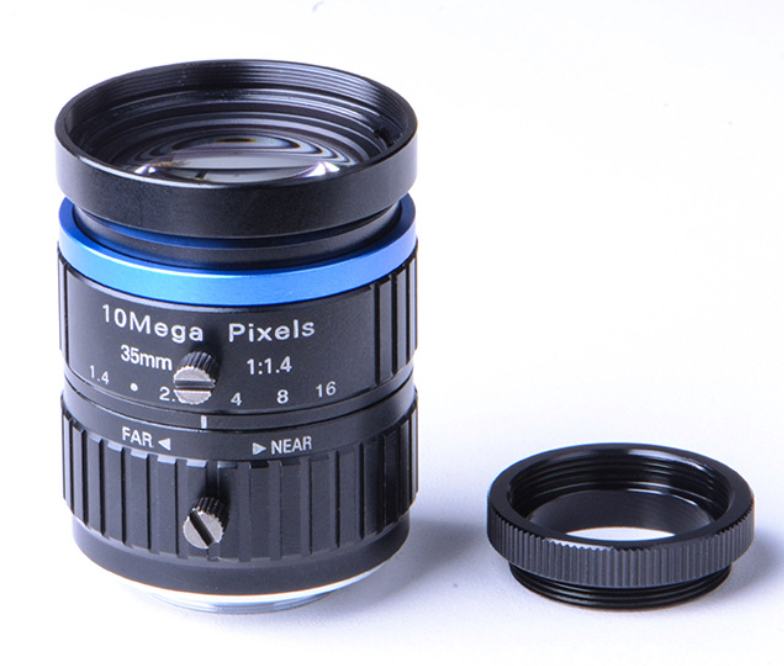

    35mm 10MP High Resolution Lens 1/1.4 HD Manual IRIS Focus C Mount For CCTV Camera Industrial Microscope

    10MP 35mm Lenses 1:1.4 HD Industrial Camera Manual IRIS Focus Lens C Mount Lens for CCTV Camera Industrial Microscope


    Specification
    ModelMR-C3514W-L10MPMountC
    Focal Length35mmBack Focal Length17.53mm
    Sensor Size1''Distortion0.03%
    ApertureF1.4Weight146g
    Dimension40*47.5mmFilter sizeM37.5*0.5P
    MOD0.3mOperating Temperature-40°C -- +85°C
    Angle of View20.9°*15.8°Resolution10.0MP
    RemarkMetal lens

    Advantages and characteristics of lens:
    1. Day & Night
    With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
    2. Flat Image
    With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
    3. Multi Coating
    To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
    4. High resolution lens
    The pixels of high resolution lenses are beyond 10.0 Megapixel, IR Cut and Lens Holder are available as per request.


    35mm 10MP High Resolution Lens 1/1.8 HD Manual IRIS Focus C Mount For CCTV Camera Industrial Microscope


    Features:
    1. 10.0 megapixel HD lens,35mm F1.4 C mount Lens, with blue ring apperance.
    2. 1" Format High quality Industrial machine vision lens ,High resolution Camera Lens
    3. 35mm lens for
    CCTV Camera Industrial Microscope, 20.9°*15.8° of FOV(H.V.)

    4. Machine vision Lens for industrial camera, Surveillance ITS Camera Lens


    Our Service:

    1. Reply your enquiry in 24 working hours.

    2. 12 Months warranty for all Octavia products.

    3. Customized design is available. OEM are welcome.

    4. Experienced engineers can solve all your technical problems

    5. Goods will ship within 3 working days after received the verified payment.

    6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
